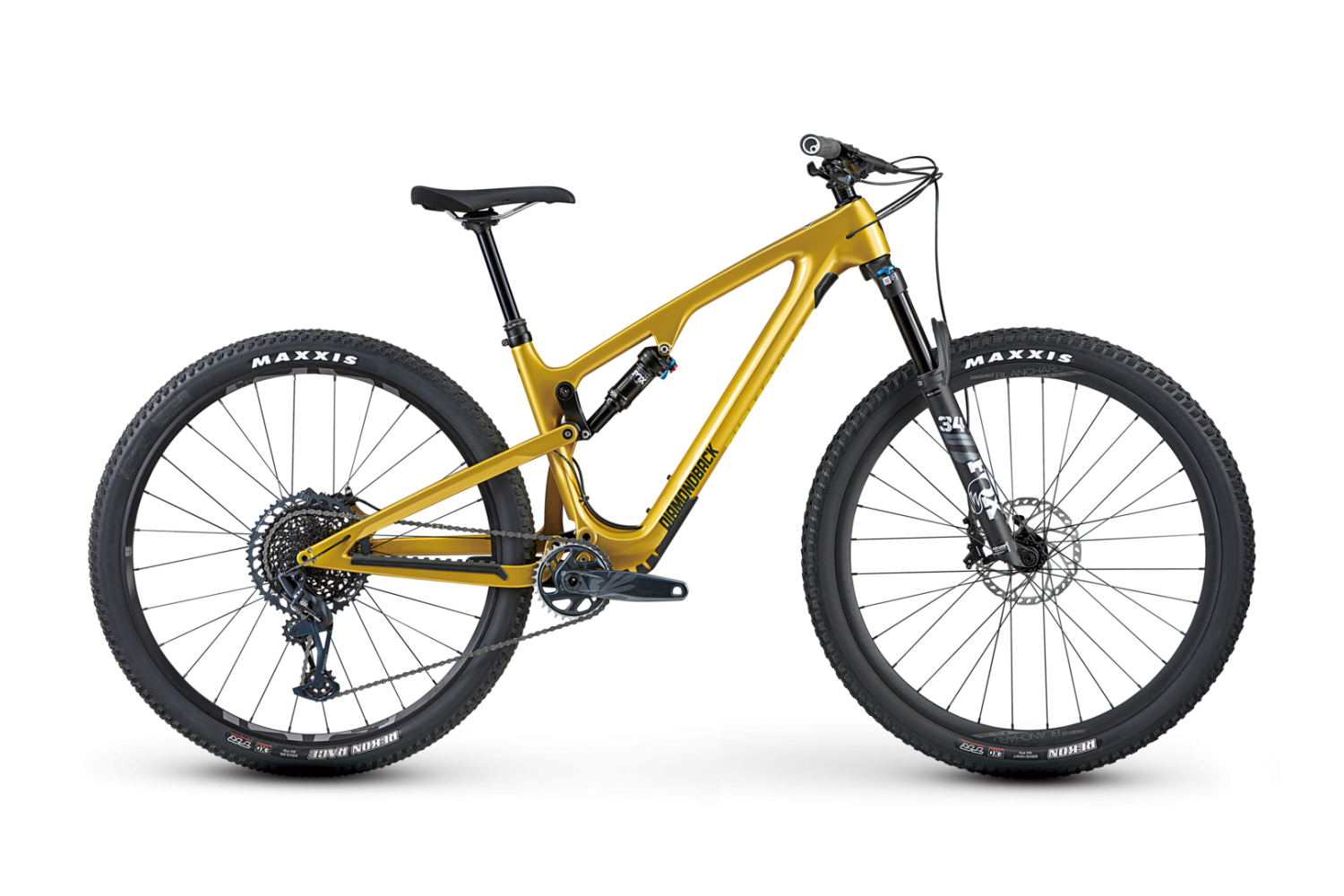

If you’re out exploring the trails, this is the carbon XC bike of you dreams. Our all new Yowie Carbon keeps things comfortable for long rides with 110mm of travel on our Level Link suspension platform and a Fox 34 Performance Float fork with 130mm of travel. The Sram GX Eagle 1×12 gives you plenty of gears while keeping it light and smooth. Sram G2 R hydraulic disc brakes, 29×2.4″ Maxxis tires in the front and 2.25" in the rear, and a KS LEV dropper post ensure you’ll have the tools you need to keep the adventure going. Meet the newest member of the Level Link family with this lightweight short travel 29’er.
FRAME SIZE | SM/15 5'4" - 5'7" | MD/17 5'7" - 5'10" | LG/19 5'10" - 6'2" | XL/21 6'2" - 6'6" |
---|---|---|---|---|
Rider Height | - | - | - | - |
Bike Stand Over Height | 730.0 mm | 730.0 mm | 738.0 mm | 740.0 mm |
Bike Seat Tube Length | 383.0 mm | 410.0 mm | 460.0 mm | 485.0 mm |
Bike Top Tube Length | 592.0 mm | 617.0 mm | 637.0 mm | 660.0 mm |
Bike Head Tube Length | 90.0 mm | 100.0 mm | 110.0 mm | 120.0 mm |
Bike Head Angle | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° |
Bike Seat Angle | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° |
Bike Wheel Base | 1152.0 mm | 1176.0 mm | 1199.0 mm | 1223.0 mm |
Bike Chain Stay Length | 435.0 mm | 435.0 mm | 435.0 mm | 435.0 mm |
Bike Fork Offset | 44.0 mm | 44.0 mm | 44.0 mm | 44.0 mm |
Bike Bb Height | 336.0 mm | 336.0 mm | 336.0 mm | 336.0 mm |
Bike Bb Drop | 40.0 mm | 40.0 mm | 40.0 mm | 40.0 mm |
Bike Stem Length | 35.0 mm | 35.0 mm | 35.0 mm | 35.0 mm |
Bike Handlebar Width | 780.0 mm | 780.0 mm | 780.0 mm | 780.0 mm |
Bike Crank Length | 170.0 mm | 175.0 mm | 175.0 mm | 175.0 mm |
Bike Seat Post Length | 435.0 mm | 485.0 mm | 485.0 mm | 485.0 mm |
Bike Stack | 604.0 mm | 613.0 mm | 622.0 mm | 631.0 mm |
Bike Reach | 430.0 mm | 450.0 mm | 470.0 mm | 490.0 mm |
Bike Fork Travel | 130.0 mm | 130.0 mm | 130.0 mm | 130.0 mm |
