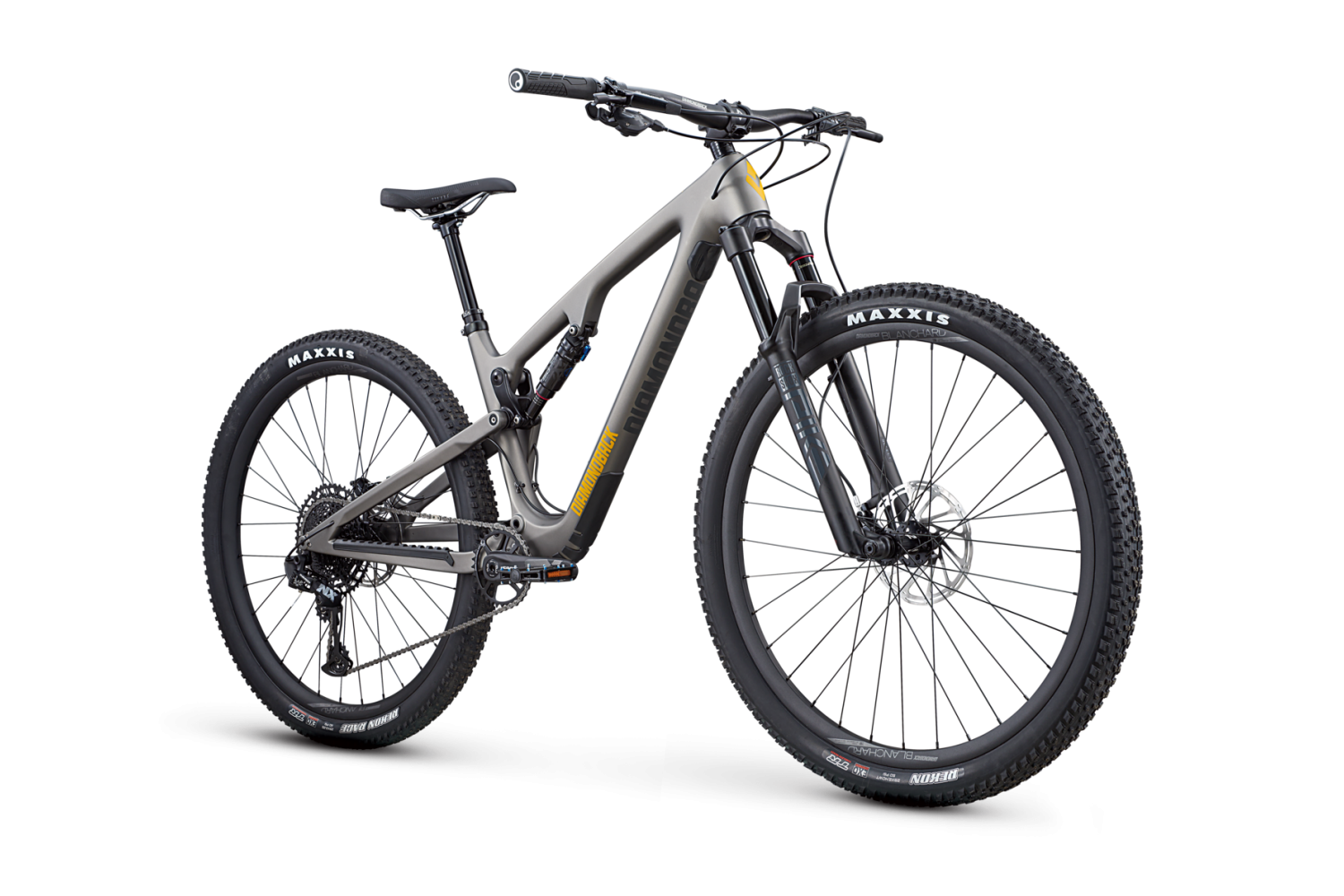

YOWIE 4C Metallic Gray Matte
$4 750.00
Sold out
size
Please choose
Sold out
Product Details
Brand: DIAMONDBACK BIKES
If you’re out exploring the trails, this is the carbon XC bike of you dreams. Our all new Yowie Carbon keeps things comfortable for long rides with 110mm of travel on our Level Link suspension platform and a RockShox Pike Select fork with 130mm of travel. The Sram NX Eagle 1×12 gives you plenty of gears while keeping it light and smooth. SRAM Guide T hydraulic disc brakes, 29×2.4″ Maxxis tires in the front and 2.25" in the rear, and a KS EXA dropper post ensure you’ll have the tools you need to keep the adventure going. Meet the newest member of the Level Link family with this lightweight short travel 29’er.
- FRAMECarbon Yowie 29, Monocoque Carbon Front and Rear Triangle, 110mm Travel, Level Link Suspension Platform, Press-Fit, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs
- REAR SHOCKRockShox SIDLuxe Select+
- FORKRockShox Pike Select, 130mm of Travel
- HEADSETFSA IS-2/42/ACB
- CRANKSSRAM SX Eagle, 32T
- SPROCKET32T Steel
- BOTTOM BRACKETSRAM DUB Press-Fit
- FRONT DERAILLEURN/A
- REAR DERAILLEURSRAM NX Eagle, 12 Speed
- SHIFTERSRAM SX Eagle, 12 Speed
- COGSETSRAM SX Eagle 11-50T
- CHAINSRAM NX Eagle, 12 Speed
- FRONT HUB32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing
- REAR HUB32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, XD Cassette
- SPOKES14g Stainless Steel
- RIMSDiamondback Blanchard 28R, Taped for Tubeless, 32h
- TIRESMaxxis Rekon 29x2.4" Front / Rekon Race 29x2.25" Rear, both Tubeless Ready
- BRAKE LEVERSSRAM Guide T
- PEDALSDB Aluminum Platform w/Replaceable Pins
- HANDLEBARDB35 Aluminum 780mm Wide, 20mm Rise, 35mm Bar Bore
- GRIPSErgon GE10 Evo Lock-On
- STEMDB35 Aluminum 35mm Reach, 35mm Bar Bore
- SEATWTB Volt Chromoly
- SEATPOSTKS EXA Form 900i, Internal Dropper, 31.6 w/Westy 1x Remote , Travel Lengths XS - 75MM, S - 100MM, MED - 150MM, L - 150MM, XL - 150MM
- EXTRASTool Kit, DB Shock Pump, Tubeless Valves, DB Mud Guard, Chainstay Protector, Carbon Paste
- BRAKESSRAM Guide T, 180mm F/R
-
FRAME SIZE XS/13 5'1"-5'4" SM/15 5'4" - 5'7" MD/17 5'7" - 5'10" LG/19 5'10" - 6'2" XL/21 6'2" - 6'6" Rider Height - - - - - Bike Stand Over Height 730.0 mm 730.0 mm 730.0 mm 738.0 mm 740.0 mm Bike Seat Tube Length 383.0 mm 383.0 mm 410.0 mm 460.0 mm 485.0 mm Bike Top Tube Length 572.0 mm 592.0 mm 617.0 mm 637.0 mm 660.0 mm Bike Head Tube Length 90.0 mm 90.0 mm 100.0 mm 110.0 mm 120.0 mm Bike Head Angle 67.0 ° 67.0 ° 67.0 ° 67.0 ° 67.0 ° Bike Seat Angle 75.0 ° 75.0 ° 75.0 ° 75.0 ° 75.0 ° Bike Wheel Base 1132.0 mm 1152.0 mm 1176.0 mm 1199.0 mm 1223.0 mm Bike Chain Stay Length 435.0 mm 435.0 mm 435.0 mm 435.0 mm 435.0 mm Bike Fork Offset 44.0 mm 44.0 mm 44.0 mm 44.0 mm 44.0 mm Bike Bb Height 336.0 mm 336.0 mm 336.0 mm 336.0 mm 336.0 mm Bike Bb Drop 14.0 mm 14.0 mm 14.0 mm 14.0 mm 14.0 mm Bike Stem Length 35.0 mm 35.0 mm 35.0 mm 35.0 mm 35.0 mm Bike Handlebar Width 780.0 mm 780.0 mm 780.0 mm 780.0 mm 780.0 mm Bike Crank Length 165.0 mm 170.0 mm 175.0 mm 175.0 mm 175.0 mm Bike Seat Post Length 435.0 mm 435.0 mm 435.0 mm 485.0 mm 485.0 mm Bike Stack 604.0 mm 604.0 mm 613.0 mm 622.0 mm 631.0 mm Bike Reach 410.0 mm 430.0 mm 450.0 mm 470.0 mm 490.0 mm Bike Fork Travel 150.0 mm 150.0 mm 150.0 mm 150.0 mm 150.0 mm
