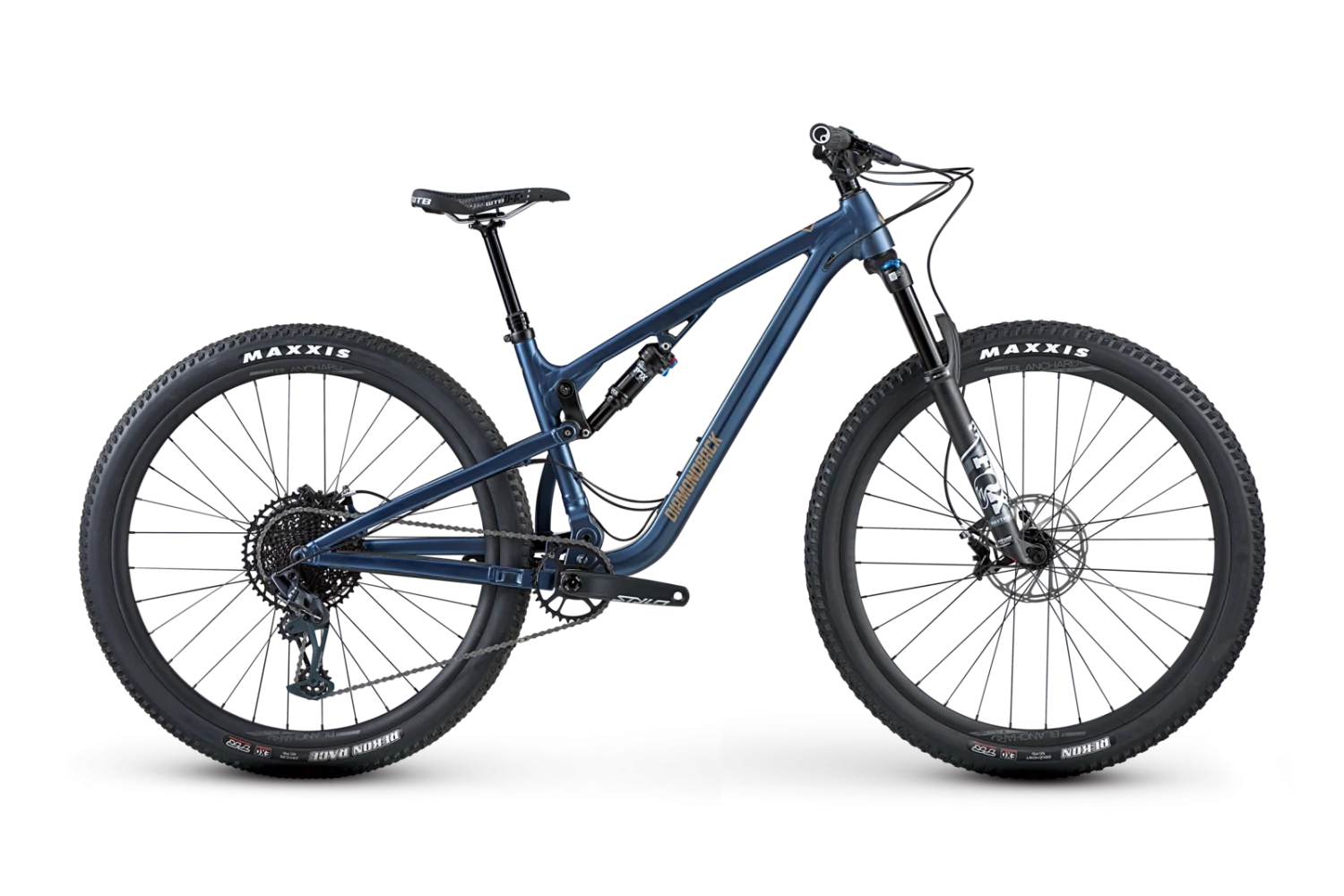

If you’re out exploring the trails, this is the XC bike of you dreams. Our all new Yowie keeps things comfortable for long rides with 110mm of travel on our Level Link suspension platform and a Fox Rhythm 34 130mm fork. The Sram GX Eagle 1×12 gives you plenty of gears while keeping it light and smooth. SRAM Guide T hydraulic disc brakes, 29×2.4″ Maxxis tires in the front and 2.25" in the rear, and a TranzX dropper post ensure you’ll have the tools you need to keep the adventure going. Meet the newest member of the Level Link family with this short travel 29’er.
FRAME SIZE | SM/15 5'4"-5'7" | MD/17 5'7"-5'10" | LG/19 5'10"-6'2" | XL/21 6'2"-6'6" |
---|---|---|---|---|
Rider Height | - | - | - | - |
Bike Stand Over Height | 730.0 mm | 730.0 mm | 738.0 mm | 740.0 mm |
Bike Seat Tube Length | 383.0 mm | 410.0 mm | 460.0 mm | 485.0 mm |
Bike Top Tube Length | 592.0 mm | 617.0 mm | 637.0 mm | 660.0 mm |
Bike Head Tube Length | 90.0 mm | 100.0 mm | 110.0 mm | 120.0 mm |
Bike Head Angle | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° |
Bike Seat Angle | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° |
Bike Wheel Base | 1152.0 mm | 1176.0 mm | 1199.0 mm | 1223.0 mm |
Bike Chain Stay Length | 435.0 mm | 435.0 mm | 435.0 mm | 435.0 mm |
Bike Fork Offset | 44.0 mm | 44.0 mm | 44.0 mm | 44.0 mm |
Bike Bb Height | 336.0 mm | 336.0 mm | 336.0 mm | 336.0 mm |
Bike Bb Drop | 40.0 mm | 40.0 mm | 40.0 mm | 40.0 mm |
Bike Stem Length | 35.0 mm | 35.0 mm | 35.0 mm | 35.0 mm |
Bike Handlebar Width | 780.0 mm | 780.0 mm | 780.0 mm | 780.0 mm |
Bike Crank Length | 170.0 mm | 170.0 mm | 175.0 mm | 175.0 mm |
Bike Seat Post Length | 435.0 mm | 435.0 mm | 485.0 mm | 485.0 mm |
Bike Stack | 604.0 mm | 613.0 mm | 622.0 mm | 631.0 mm |
Bike Reach | 430.0 mm | 450.0 mm | 470.0 mm | 490.0 mm |
Bike Fork Travel | 130.0 mm | 130.0 mm | 130.0 mm | 130.0 mm |
