RELEASE 4C  Squash Orange Matte

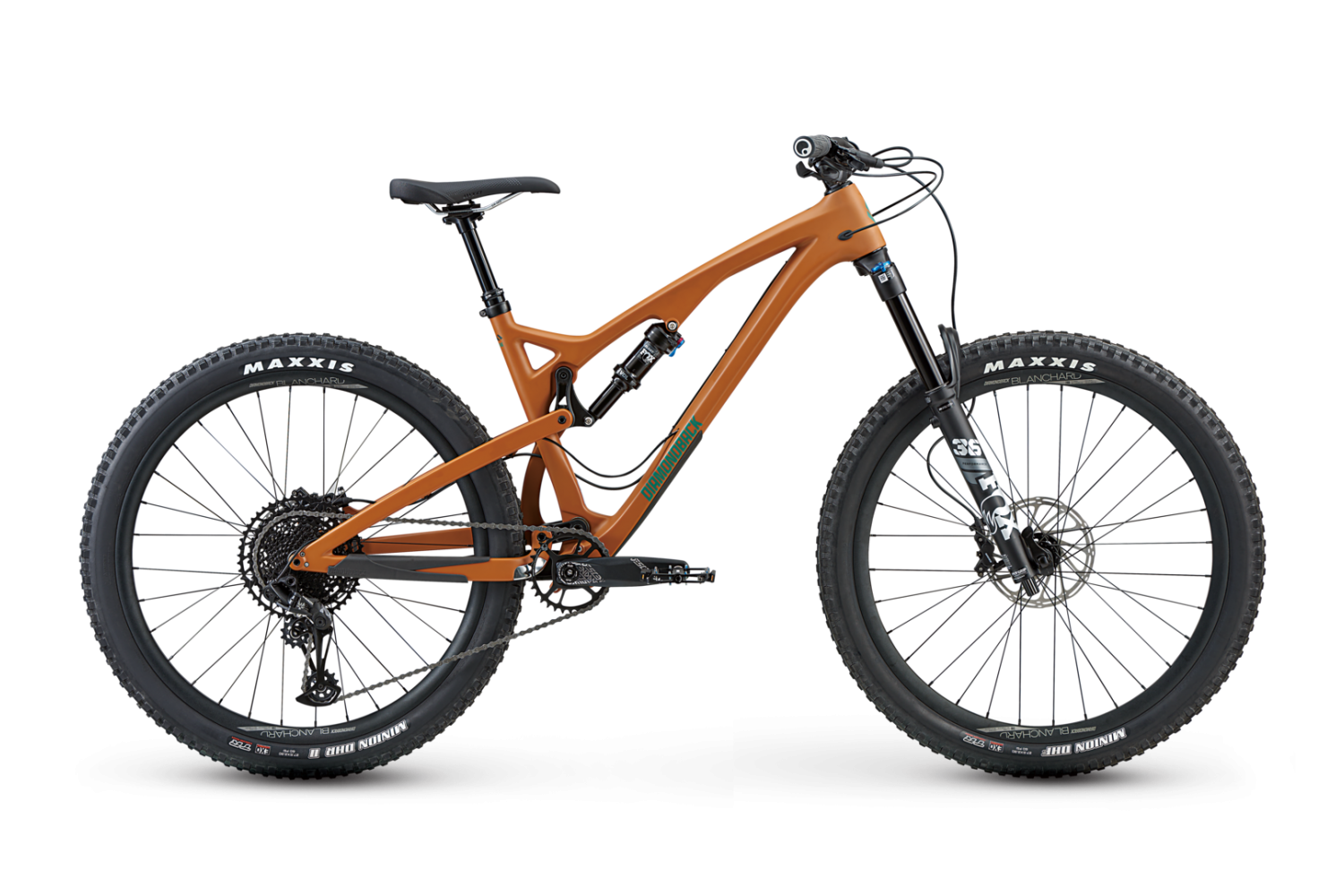

RELEASE 4C Squash Orange Matte

$4 750.00
Sold out
size
Please choose
Sold out
Product Details
Brand: DIAMONDBACK BIKES

DESCRIPTION

The Release 4C features the same bottomless-feeling rear suspension and deft handling as our aluminum Release models, but with an even lighter, stiffer chassis built from carbon fiber. It starts with our Level Link suspension system, which isolates chain forces from trail inputs, meaning the suspension doesn’t bob when you stomp on the pedals, yet becomes extremely plush on technical descents. For smooth bump-eating performance, the Release 4C is equipped with a Fox Float DPS EVOL LV rear shock and a 150mm travel Fox 36 Performance Float fork. SRAM’s NX Eagle 12-speed single-ring drivetrain provides consistent shifting and, thanks to its 50-tooth granny gear, makes short work of pesky climbs. SRAM G2 R brakes keep you slicing through the most technical lines all day long and tubeless ready Maxxis Minion tires will keep you rolling with confidence.

SPECIFICATIONS
  • FRAMECarbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs
  • REAR SHOCKFox Float DPS EVOL LV, Performance, 3 Position Lever, 200x57mm, 22.2mm Eyelet Width
  • FORKFox 36 Performance Float, 27.5", 150mm Travel, Grip 3 Position Damper, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle, 44mm Offset
  • HEADSETFSA No. 57 Sealed Cartridge
  • CRANKSSRAM Descendant 6K Eagle w/32T Direct Mount
  • BOTTOM BRACKETSRAM DUB Outboard Bearing
  • FRONT DERAILLEURN/A
  • REAR DERAILLEURSRAM NX Eagle, 12 Speed
  • SHIFTERSRAM NX Eagle, 12 Speed
  • COGSETSRAM PG-1230 Eagle, 12 Speed, 11-50T
  • CHAINSRAM NX Eagle, 12 Speed
  • FRONT HUBNovatec SL-Team, 32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing
  • REAR HUBNovatec SL-Team, 32h Aluminum, 148x12mm Thru-axle, Sealed Cartridge Bearing
  • SPOKES14g Stainless Steel
  • RIMSDiamondback Blanchard 28R, Taped for Tubeless, 32h
  • TIRESMaxxis Minion DHF 27.5x2.3" EXO, TR (Tubeless Ready), Folding / Maxxis Minion DHR 27.5x2.3" EXO, TR (Tubeless Ready), Folding
  • BRAKE LEVERSSRAM G2 R
  • PEDALSDB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins
  • HANDLEBARDB35 Aluminum 780mm Wide, 15mm Rise, 35mm Bar Bore
  • GRIPSErgon GE10 Evo Lock-On
  • STEMFactor Components F355, 35mm Reach, 35mm Bar Bore
  • SEATWTB Volt Chromoly
  • SEATPOSTKS Rage-I, Internal Dropper, 31.6 w/Westy 1x Remote
  • EXTRASTool Kit, DB Shock Pump, Tubeless Valves, DB Mud Guard, Chainstay Protector, Carbon Paste
  • BRAKESSRAM G2 R, 4 Piston w/180mm Front / 180mm Rear Centerline Rotors
  • GEOMETRY
    FRAME SIZE XS/14 5'1"-5'4" SM/15.5 5'4" - 5'7" MD/17 5'7" - 5'10" LG/19 5'10" - 6'2" XL/21 6'2" - 6'6"
    Rider Height - - - - -
    Bike Stand Over Height 739.0 mm 739.0 mm 740.0 mm 743.0 mm 749.0 mm
    Bike Seat Tube Length 388.0 mm 394.0 mm 432.0 mm 483.0 mm 533.0 mm
    Bike Top Tube Length 557.0 mm 585.0 mm 610.0 mm 635.0 mm 660.0 mm
    Bike Head Tube Length 100.0 mm 100.0 mm 110.0 mm 120.0 mm 130.0 mm
    Bike Head Angle 66.0 ° 66.0 ° 66.0 ° 66.0 ° 66.0 °
    Bike Seat Angle 73.0 ° 73.0 ° 73.0 ° 73.0 ° 73.0 °
    Bike Wheel Base 1107.0 mm 1133.0 mm 1160.0 mm 1186.0 mm 1213.0 mm
    Bike Chain Stay Length 425.0 mm 425.0 mm 425.0 mm 425.0 mm 425.0 mm
    Bike Fork Offset 44.0 mm 44.0 mm 44.0 mm 44.0 mm 44.0 mm
    Bike Bb Height 341.0 mm 341.0 mm 341.0 mm 341.0 mm 341.0 mm
    Bike Bb Drop 14.0 mm 14.0 mm 14.0 mm 14.0 mm 14.0 mm
    Bike Stem Length 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm
    Bike Handlebar Width 780.0 mm 780.0 mm 780.0 mm 780.0 mm 780.0 mm
    Bike Crank Length 170.0 mm 170.0 mm 175.0 mm 175.0 mm 175.0 mm
    Bike Seat Post Length 435.0 mm 435.0 mm 435.0 mm 485.0 mm 485.0 mm
    Bike Stack 584.0 mm 584.0 mm 597.0 mm 603.0 mm 612.0 mm
    Bike Reach 380.0 mm 406.0 mm 429.0 mm 451.0 mm 473.0 mm
    Bike Fork Travel 150.0 mm 150.0 mm 150.0 mm 150.0 mm 150.0 mm
