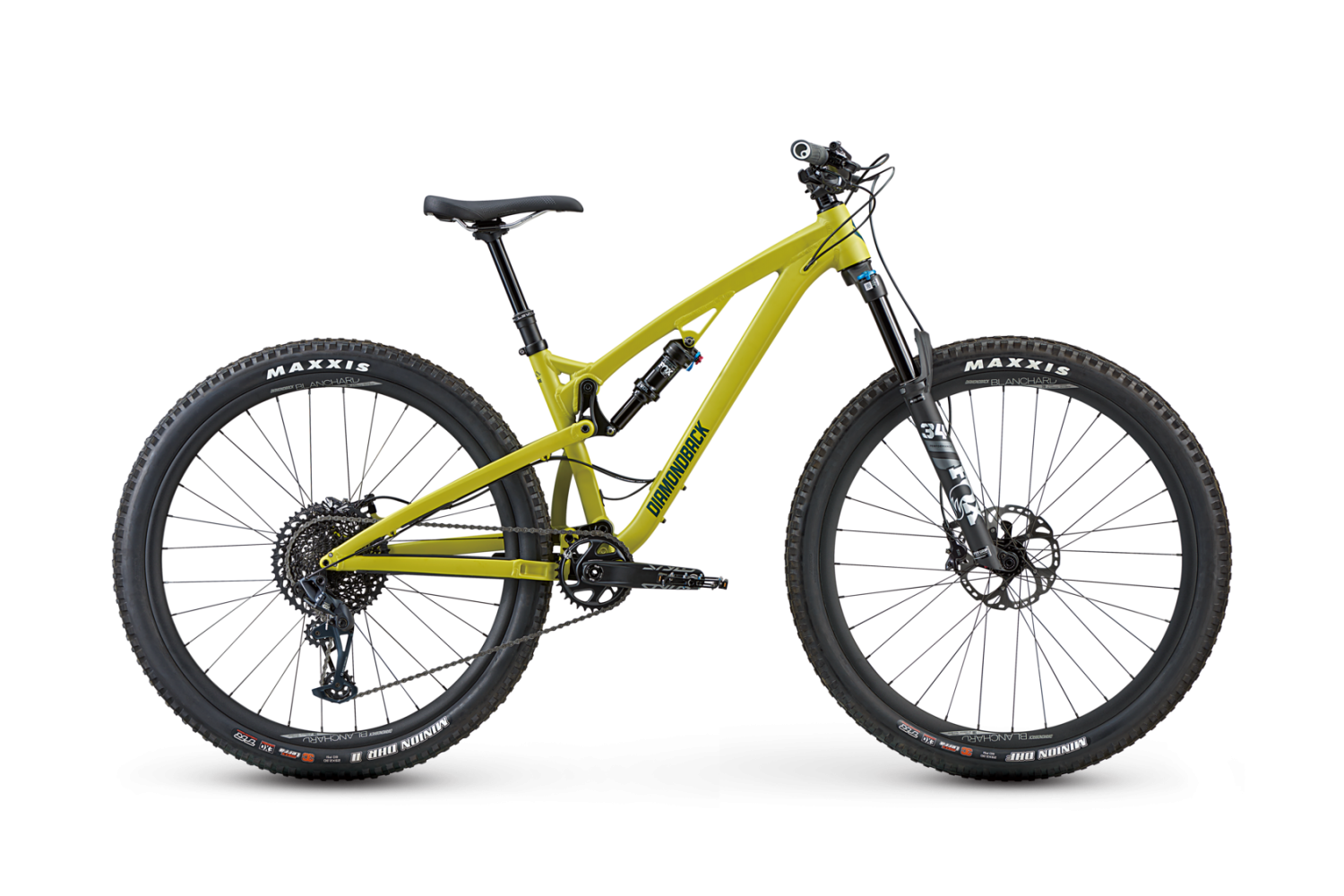

When you spend hours in the saddle getting to a jaw-dropping descent, your bike should 100 percent rip. Those are the days for the Release 29 3. This aluminum trail bike is built on a 130mm travel Level Link suspension platform. We’ve adjusted the geometry for 29-inch tubeless ready wheels while keeping the same playful attitude of all our Level Link bikes. A Sram GX Eagle drivetrain paired with Sram Stylo cranks provides crisp shifts. The Fox Performance Elite Float DPS rear shock offers improved performance on the most aggressive descents plus a greater compression adjustment range. For truly hairy descents, the 140mm travel Fox 34 Performance fork and Shimano XT brakes keep you laser-focused.
FRAME SIZE | SM/15.5 5'4"-5'7" | MD/17 5'7"-5'10" | LG/19 5'10"-6'2" | XL/21 6'2"-6'6" |
---|---|---|---|---|
Rider Height | - | - | - | - |
Bike Stand Over Height | 775.0 mm | 784.0 mm | 791.0 mm | 804.0 mm |
Bike Seat Tube Length | 394.0 mm | 432.0 mm | 483.0 mm | 533.0 mm |
Bike Top Tube Length | 585.0 mm | 610.0 mm | 635.0 mm | 660.0 mm |
Bike Head Tube Length | 100.0 mm | 100.0 mm | 110.0 mm | 120.0 mm |
Bike Head Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
Bike Seat Angle | 73.0 ° | 73.0 ° | 73.0 ° | 73.0 ° |
Bike Wheel Base | 1134.0 mm | 1159.0 mm | 1185.0 mm | 1211.0 mm |
Bike Chain Stay Length | 446.0 mm | 446.0 mm | 446.0 mm | 446.0 mm |
Bike Bb Height | 348.0 mm | 348.0 mm | 348.0 mm | 348.0 mm |
Bike Bb Drop | 25.0 mm | 25.0 mm | 25.0 mm | 25.0 mm |
Bike Stem Length | 40.0 mm | 40.0 mm | 40.0 mm | 40.0 mm |
Bike Handlebar Width | 780.0 mm | 780.0 mm | 780.0 mm | 780.0 mm |
Bike Crank Length | 170.0 mm | 175.0 mm | 175.0 mm | 175.0 mm |
Bike Seat Post Length | 435.0 mm | 435.0 mm | 485.0 mm | 485.0 mm |
Bike Stack | 599.0 mm | 599.0 mm | 608.0 mm | 617.0 mm |
Bike Reach | 402.0 mm | 427.0 mm | 449.0 mm | 472.0 mm |
Bike Fork Travel | 140.0 mm | 140.0 mm | 140.0 mm | 140.0 mm |
