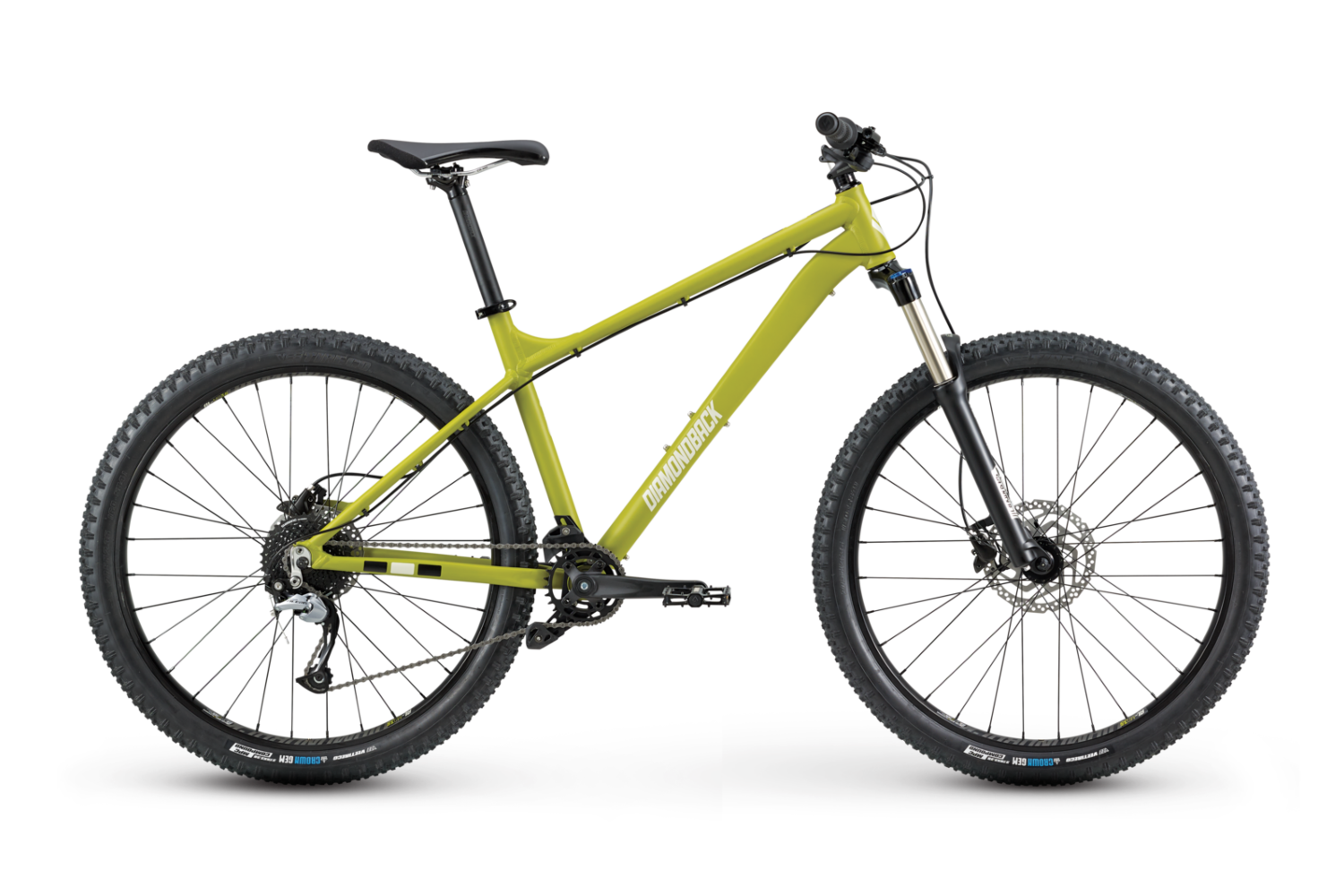

There was a time when every mountain bike was an all-around hardtail. The Line follows in that great tradition — but that doesn’t mean it’s some kind of crusty throwback. We’ve equipped the Line with a cutting-edge frame that’s lightweight yet bomber. Stable under pressure, yet playful when you’re looking to boost a little air or hit that next corner a bit faster than is, strictly speaking, wise.
The Line’s modern frame is dressed out in parts that are just as impressive. A Shimano 1×9 drivetrain lets you blaze through the gears with pinpoint precision every single time. Because we know hard-charging riders gravitate to these progressive trail bikes, we’ve also added a bit more security in the form of a chain guide with roller, a capable SR Suntour XCR 120mm travel fork (with a lock-out for those big climbing days) and powerful Shimano hydraulic disc brakes.
Climbs, descents, berms, a bit of jumping: the Line upholds the do-it-all hardtail tradition … without being traditional at all.
FRAME SIZE | SM/16 5'4"-5'7" | MD/18 5'7"-5'10" | LG/20 5'10"-6'1" | XL/22 6'1"-6'4" |
---|---|---|---|---|
Rider Height | - | - | - | - |
Bike Stand Over Height | 728.0 mm | 769.0 mm | 799.0 mm | 830.0 mm |
Bike Seat Tube Length | 400.0 mm | 450.0 mm | 500.0 mm | 550.0 mm |
Bike Top Tube Length | 575.0 mm | 600.0 mm | 620.0 mm | 640.0 mm |
Bike Head Tube Length | 105.0 mm | 125.0 mm | 145.0 mm | 165.0 mm |
Bike Head Angle | 68.0 ° | 68.0 ° | 68.0 ° | 68.0 ° |
Bike Seat Angle | 73.0 ° | 73.0 ° | 73.0 ° | 73.0 ° |
Bike Wheel Base | 1087.0 mm | 1113.0 mm | 1135.0 mm | 1157.0 mm |
Bike Chain Stay Length | 430.0 mm | 430.0 mm | 430.0 mm | 430.0 mm |
Bike Fork Offset | 44.0 mm | 44.0 mm | 44.0 mm | 44.0 mm |
Bike Bb Height | 305.0 mm | 305.0 mm | 305.0 mm | 305.0 mm |
Bike Bb Drop | 44.0 mm | 44.0 mm | 44.0 mm | 44.0 mm |
Bike Stem Length | 45.0 mm | 45.0 mm | 45.0 mm | 45.0 mm |
Bike Handlebar Width | 750.0 mm | 750.0 mm | 750.0 mm | 750.0 mm |
Bike Crank Length | 170.0 mm | 175.0 mm | 175.0 mm | 175.0 mm |
Bike Seat Post Length | 350.0 mm | 350.0 mm | 350.0 mm | 350.0 mm |
Bike Stack | 577.0 mm | 595.0 mm | 614.0 mm | 633.0 mm |
Bike Reach | 398.0 mm | 417.0 mm | 432.0 mm | 446.0 mm |
Bike Fork Travel | 120.0 mm | 120.0 mm | 120.0 mm | 120.0 mm |
