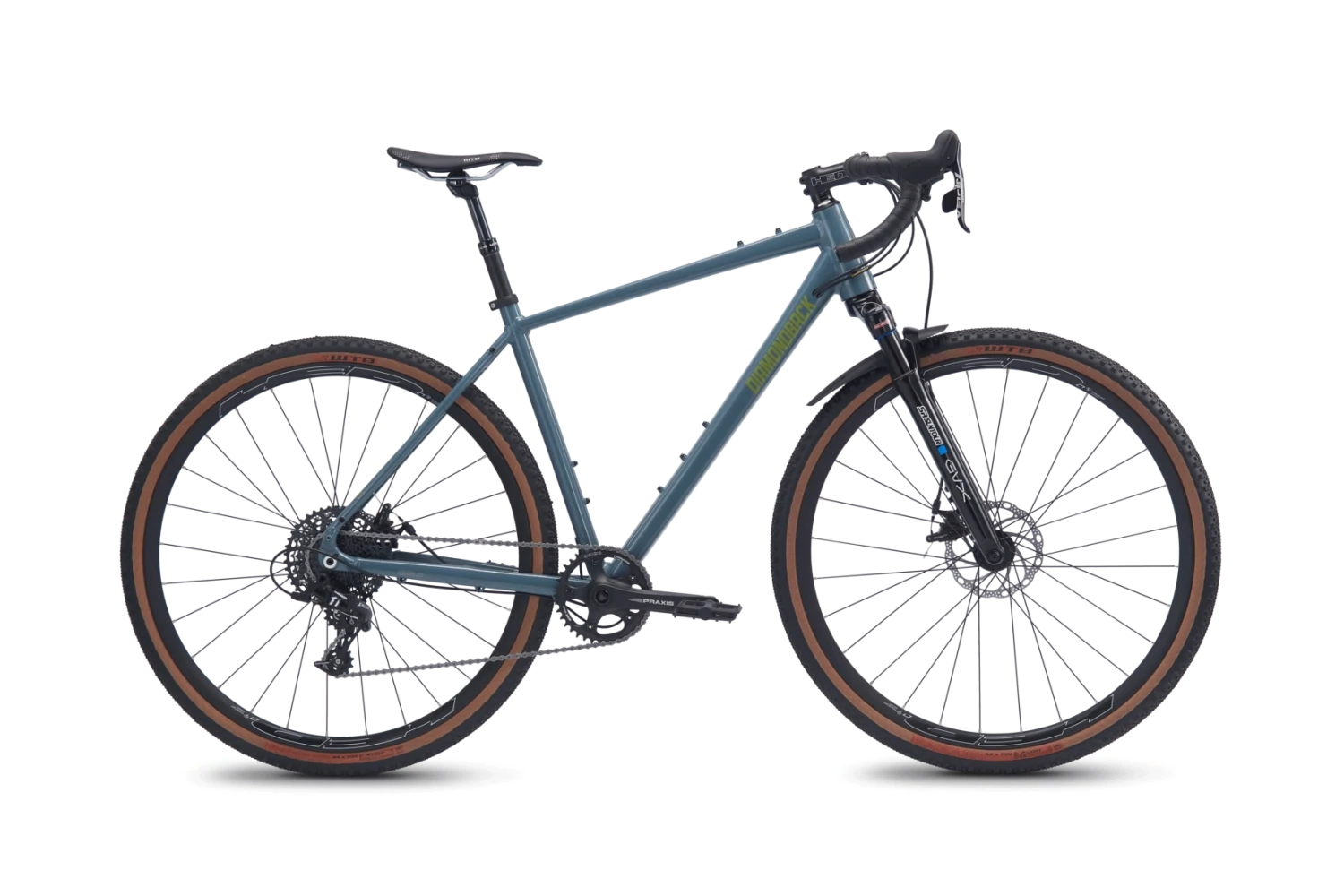

HAANJO 4 EXP Dark Grey Gloss
$2 200.00
Sold out
size
Please choose
Sold out
Product Details
Brand: DIAMONDBACK BIKES
All the greatness of our Haanjo 4 and then some. This is a gravel bike that can handle so much more with an added SR Suntour 60mm travel suspension fork. We then took our aluminum frame and added thru-axles front and rear, and a Kind Shock dropper post, to give it even more precise handling. The component package includes TRP Spyre C Flat Mount Mechanical Disc brakes and a Sram Apex 1×11 drivetrain for performance, weight savings, and durability. HED Tomcat Disc wheels and grippy WTB Raddler 700×44c tires roll smoothly on pavement but can take plenty of abuse off-road. Potholes, fire roads, wherever you choose to go … the Haanjo 4 EXP says, “Bring it on."
- FRAMEDB Alloy Gravel Frame, Endurance Geometry, Fully Butted 6061-T6 Aluminum Formed Top Tube, Tapered Headtube, Flat Mount Disc , 142x12mm Thru-axle, Top Tube Bag Mounts, w/Replaceable Hanger
- FORKSR Suntour GVX32, 60mm Travel Suspension Fork, 12mm Thru Axle Drop Outs
- HEADSETFSA No.42, Sealed Cartridge
- CRANKSPraxis Alba M24 38T
- BOTTOM BRACKETPraxis M24 BSA
- REAR DERAILLEURSRAM Apex 1, 1x11 Speed
- SHIFTERSRAM Apex 1, 11 Speed, Double Tap 1x11 Speed, w/Left Dropper Remote Lever
- COGSETSRAM PG-1130 Cassette 11-42T, 11 Speed
- CHAINSRAM PC-1110, 11 Speed
- FRONT HUB28h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle
- REAR HUB28h Aluminum Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette
- SPOKES14 gauge Stainless Steel
- RIMSHED Tomcat Disc, 28h, 25mm Internal Width, Taped for Tubeless
- TIRESWTB Raddler TCS Light, Dual DNA Compound, Lightweight Tubeless Casing, 700x44c
- BRAKE LEVERSSRAM Apex 1
- PEDALSDB Resin Gravel Platform
- HANDLEBARHED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore
- GRIPSDiamondback Endurance Gel Tape
- STEMHED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore
- SEATWTB Gravelier, Cromoly Rail, 142x250
- SEATPOSTKind Shock eTENi 27.2 Dropper, 65mm (XS,S,MD) 100mm (L,XL) travel
- EXTRASTool Kit
- BRAKESTRP Spyre C Flat Mount Mechanical Disc, w/160mm Front / 160mm Rear Rotors
-
FRAME SIZE XS/47 5'1"-5'4" SM/50 5'4"-5'8" MD/53 5'7"-5'10" LG/56 5'10" - 6'1" XL/59 6'1-6'4" Rider Height - - - - - Bike Stand Over Height 688.0 mm 743.0 mm 780.0 mm 808.0 mm 837.0 mm Bike Seat Tube Length 380.0 mm 450.0 mm 500.0 mm 535.0 mm 565.0 mm Bike Top Tube Length 520.0 mm 535.0 mm 550.0 mm 575.0 mm 600.0 mm Bike Head Tube Length 110.0 mm 130.0 mm 145.0 mm 160.0 mm 185.0 mm Bike Head Angle 69.0 ° 70.0 ° 70.5 ° 71.0 ° 71.0 ° Bike Seat Angle 75.0 ° 75.0 ° 74.0 ° 72.5 ° 72.5 ° Bike Wheel Base 1038.0 mm 1045.0 mm 1045.0 mm 1049.0 mm 1075.0 mm Bike Chain Stay Length 435.0 mm 435.0 mm 435.0 mm 435.0 mm 435.0 mm Bike Fork Offset 50.0 mm 50.0 mm 50.0 mm 50.0 mm 50.0 mm Bike Bb Height 278.0 mm 278.5 mm 279.5 mm 279.0 mm 279.0 mm Bike Bb Drop 75.0 mm 74.5 mm 73.5 mm 73.0 mm 73.0 mm Bike Stem Length 70.0 mm 70.0 mm 80.0 mm 80.0 mm 90.0 mm Bike Handlebar Width 380.0 mm 420.0 mm 460.0 mm 460.0 mm 460.0 mm Bike Crank Length 165.0 mm 170.0 mm 172.5 mm 172.5 mm 175.0 mm Bike Seat Post Length 310.0 mm 310.0 mm 310.0 mm 400.0 mm 400.0 mm Bike Stack 559.0 mm 581.0 mm 594.0 mm 612.0 mm 636.0 mm Bike Reach 370.0 mm 379.0 mm 380.0 mm 382.0 mm 400.0 mm Bike Fork Travel 60 mm 60 mm 60 mm 60 mm 60 mm Bike Fork Length 425 mm 425 mm 425 mm 425 mm 425 mm
