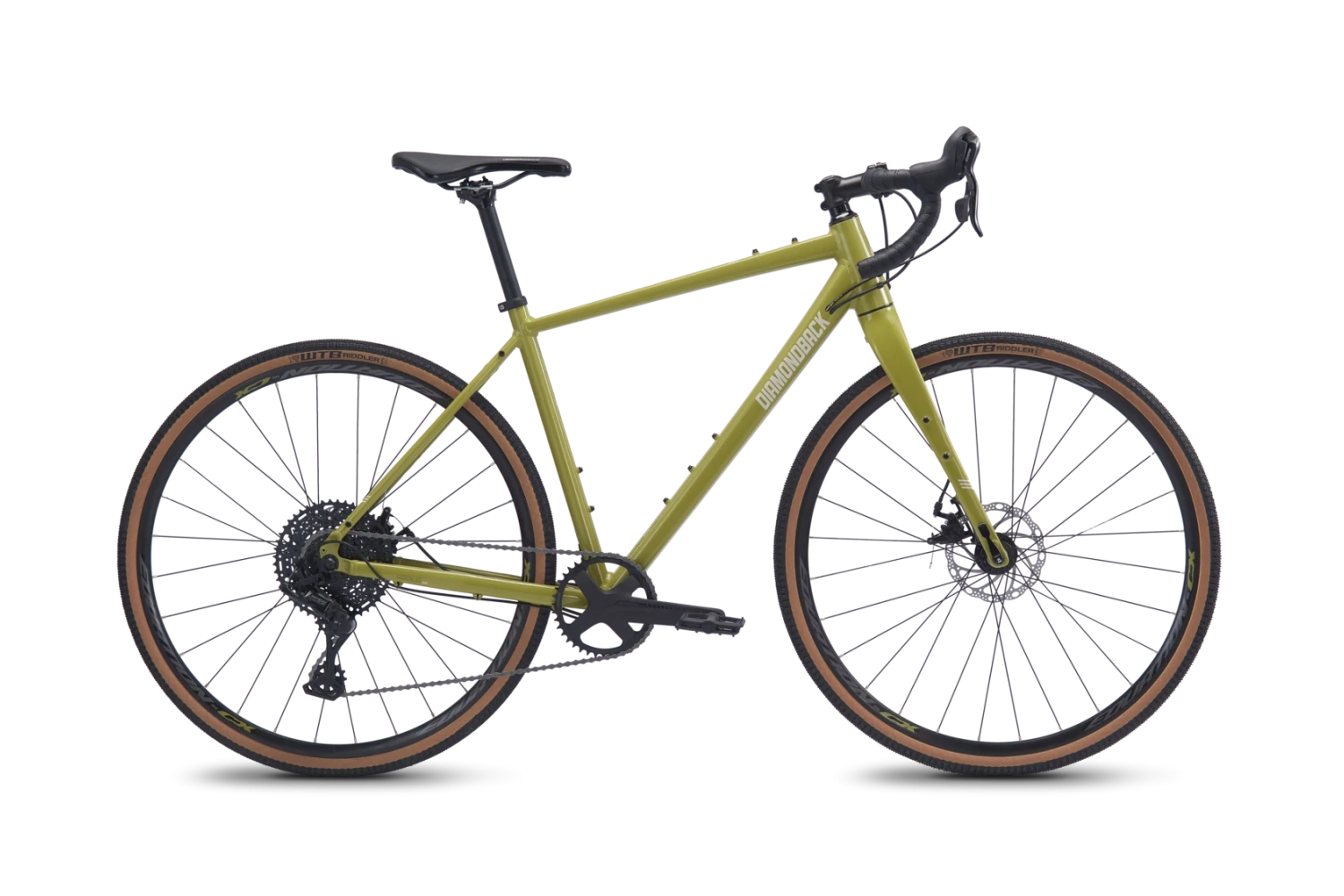

HAANJO 3 Light Khaki Green Gloss
$1 300.00
Sold out
size
Please choose
Product Details
Brand: DIAMONDBACK BIKES
Your next bike shouldn’t limit you — it should open up a world of new possibilities. Enter the Haanjo 3, a bike that can handle any kind of road — paved or not — that calls your name. We equipped the Haanjo 3 with a butted and formed aluminum frame that delivers a great balance of comfort and durability. Our updated Endurance Geometry is also designed to place you in a more comfortable position that’s perfect for both long rides and rough roads. The Micro Shift 1×10-speed drivetrain provides ample gearing for those long hauls and our Gravel Disc carbon fork keeps the steering pinpoint precise without adding extra weight to the mix. Where can you ride the Haanjo 3? Wherever you want. There are no limits with this one.
- FRAMEDB Alloy Gravel Frame, Endurance Geometry, Fully Butted 6061-T6 Aluminum Formed Top Tube, Tapered Headtube, Flat Mount Disc , QR Drop out, Top Tube Bag Mounts, w/Replaceable Hanger
- FORKDB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube
- HEADSETFSA No.42B, Sealed Cartridge
- CRANKSFSA Omega Adventure, 40T
- BOTTOM BRACKETFSA Mega Exo
- REAR DERAILLEURMicroSHIFT Advent X, 10 Speed
- SHIFTERMicroSHIFT Advent X Dual Control, 1x10 Speed
- COGSETMicroSHIFT Advent CS-H104, 10 Speed Cassette, 11-48T
- CHAINKMC X10, 10 Speed
- FRONT HUB28h Alloy 12mm Thru Axle
- REAR HUB28h Alloy Quick Release, Cassette
- SPOKES14g Stainless Steel
- RIMSDiamondback Equation CX, 28h, Doublewall
- TIRESWTB Riddler Comp, 700x37c
- BRAKE LEVERSMicroSHIFT Advent X Dual Control
- PEDALSDB Resin Gravel Platform
- HANDLEBARHED, 7050 Alloy, 12 Degree Flare, 31.8mm Bar Bore
- GRIPSDiamondback Endurance Gel Tape
- STEMDB 6061 Alloy, +/-7° Rise, 31.8 Bar Bore
- SEATDiamondback Performance Gravel Road
- SEATPOSTDB Micro Adjust 6061 Alloy, 27.2mm
- EXTRASTool Kit
- BRAKESTektro MD-C550 Flat Mount Mechanical Disc, w/160mm Front / 160mm Rear Rotors
-
FRAME SIZE XS/47CM 5'1"-5'4" SM/50CM 5'4"-5'8" MD/53CM 5'7"-5'10" LG/56CM 5'10"-6'1" XL/59CM 6'1"-6'4" Rider Height - - - - - Bike Stand Over Height 680.0 mm 735.0 mm 772.0 mm 800.0 mm 828.0 mm Bike Seat Tube Length 380.0 mm 450.0 mm 500.0 mm 535.0 mm 565.0 mm Bike Top Tube Length 520.0 mm 535.0 mm 550.0 mm 575.0 mm 600.0 mm Bike Head Tube Length 110.0 mm 130.0 mm 145.0 mm 160.0 mm 185.0 mm Bike Head Angle 69.0 ° 70.0 ° 70.5 ° 71.0 ° 71.0 ° Bike Seat Angle 75.0 ° 75.0 ° 74.0 ° 72.5 ° 72.5 ° Bike Wheel Base 1035.0 mm 1043.0 mm 1045.0 mm 1048.0 mm 1074.0 mm Bike Chain Stay Length 435.0 mm 435.0 mm 435.0 mm 435.0 mm 435.0 mm Bike Fork Offset 50.0 mm 50.0 mm 50.0 mm 50.0 mm 50.0 mm Bike Bb Height 278.0 mm 278.5 mm 279.5 mm 279.0 mm 279.0 mm Bike Bb Drop 75.0 mm 74.5 mm 73.5 mm 73.0 mm 73.0 mm Bike Stem Length 70.0 mm 70.0 mm 80.0 mm 80.0 mm 90.0 mm Bike Handlebar Width 380.0 mm 420.0 mm 440.0 mm 440.0 mm 460.0 mm Bike Crank Length 165.0 mm 170.0 mm 172.5 mm 172.5 mm 175.0 mm Bike Seat Post Length 350.0 mm 350.0 mm 350.0 mm 350.0 mm 350.0 mm Bike Stack 541.0 mm 562.0 mm 578.0 mm 594.0 mm 617.0 mm Bike Reach 375.0 mm 383.0 mm 384.0 mm 387.0 mm 405.0 mm Bike Fork Length 404 mm 404 mm 404 mm 404 mm 404 mm
