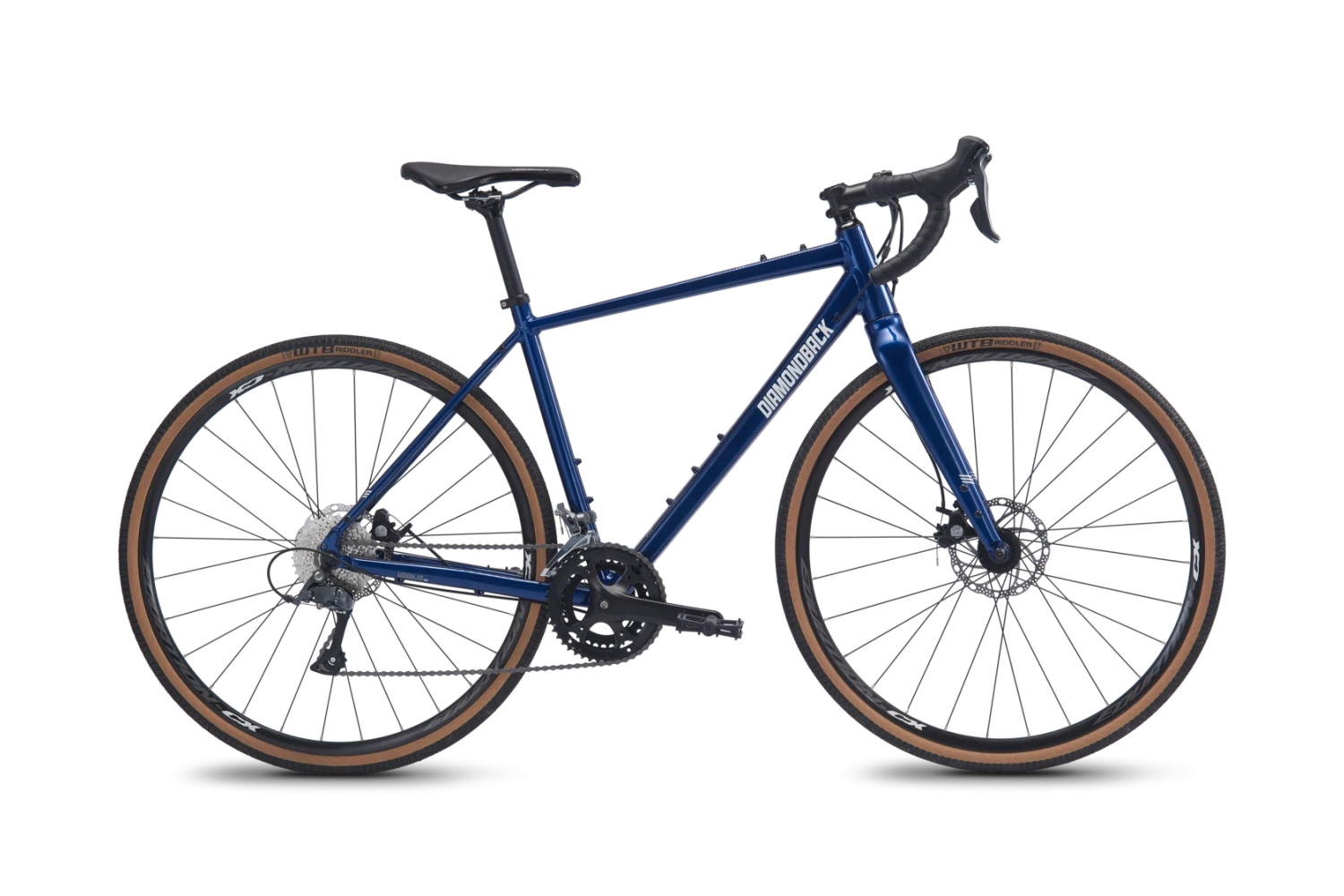

Most of us don’t have the space to assemble a massive quiver of bikes. Then again, versatility is appealing. And if you own the Diamondback Haanjo 2, you don’t actually need a quiver of bikes. Hoping to hit the road on a touring bike? Load up your gear with the Haanjo 2’s front and rear rack mounts. Want a fast, reliable commuter bike? We’ve included fender mounts to keep you riding into work when the clouds roll in and send less intrepid types scurrying for their minivans. With wide WTB 700×37c tires to smooth out rough roads, the Haanjo 2 is also a fun and capable road bike in its own right — quick, snappy, and yet comfortable on all-day rides.
FRAME SIZE | XS/47CM 5'1"-5'4" | SM/50CM 5'4"-5'8" | MD/53CM 5'7"-5'10" | LG/56CM 5'10"-6'1" | XL/59CM 6'1"-6'4" |
---|---|---|---|---|---|
Rider Height | - | - | - | - | - |
Bike Stand Over Height | 680.0 mm | 735.0 mm | 772.0 mm | 800.0 mm | 828.0 mm |
Bike Seat Tube Length | 380.0 mm | 450.0 mm | 500.0 mm | 535.0 mm | 565.0 mm |
Bike Top Tube Length | 520.0 mm | 535.0 mm | 550.0 mm | 575.0 mm | 600.0 mm |
Bike Head Tube Length | 110.0 mm | 130.0 mm | 145.0 mm | 160.0 mm | 185.0 mm |
Bike Head Angle | 69.0 ° | 70.0 ° | 70.5 ° | 71.0 ° | 71.0 ° |
Bike Seat Angle | 75.0 ° | 75.0 ° | 74.0 ° | 72.5 ° | 72.5 ° |
Bike Wheel Base | 1035.0 mm | 1043.0 mm | 1045.0 mm | 1048.0 mm | 1074.0 mm |
Bike Chain Stay Length | 435.0 mm | 435.0 mm | 435.0 mm | 435.0 mm | 435.0 mm |
Bike Fork Offset | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm |
Bike Bb Height | 278.0 mm | 278.5 mm | 279.5 mm | 279.0 mm | 279.0 mm |
Bike Bb Drop | 75.0 mm | 74.5 mm | 73.5 mm | 73.0 mm | 73.0 mm |
Bike Stem Length | 60.0 mm | 60.0 mm | 75.0 mm | 90.0 mm | 90.0 mm |
Bike Handlebar Width | 380.0 mm | 420.0 mm | 440.0 mm | 440.0 mm | 460.0 mm |
Bike Crank Length | 165.0 mm | 170.0 mm | 170.0 mm | 175.0 mm | 175.0 mm |
Bike Seat Post Length | 350.0 mm | 350.0 mm | 350.0 mm | 350.0 mm | 350.0 mm |
Bike Stack | 541.0 mm | 562.0 mm | 578.0 mm | 594.0 mm | 617.0 mm |
Bike Reach | 375.0 mm | 383.0 mm | 384.0 mm | 387.0 mm | 405.0 mm |
Bike Fork Length | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm |
