AIMA  Big Sur Sport Ebike
+3
+2

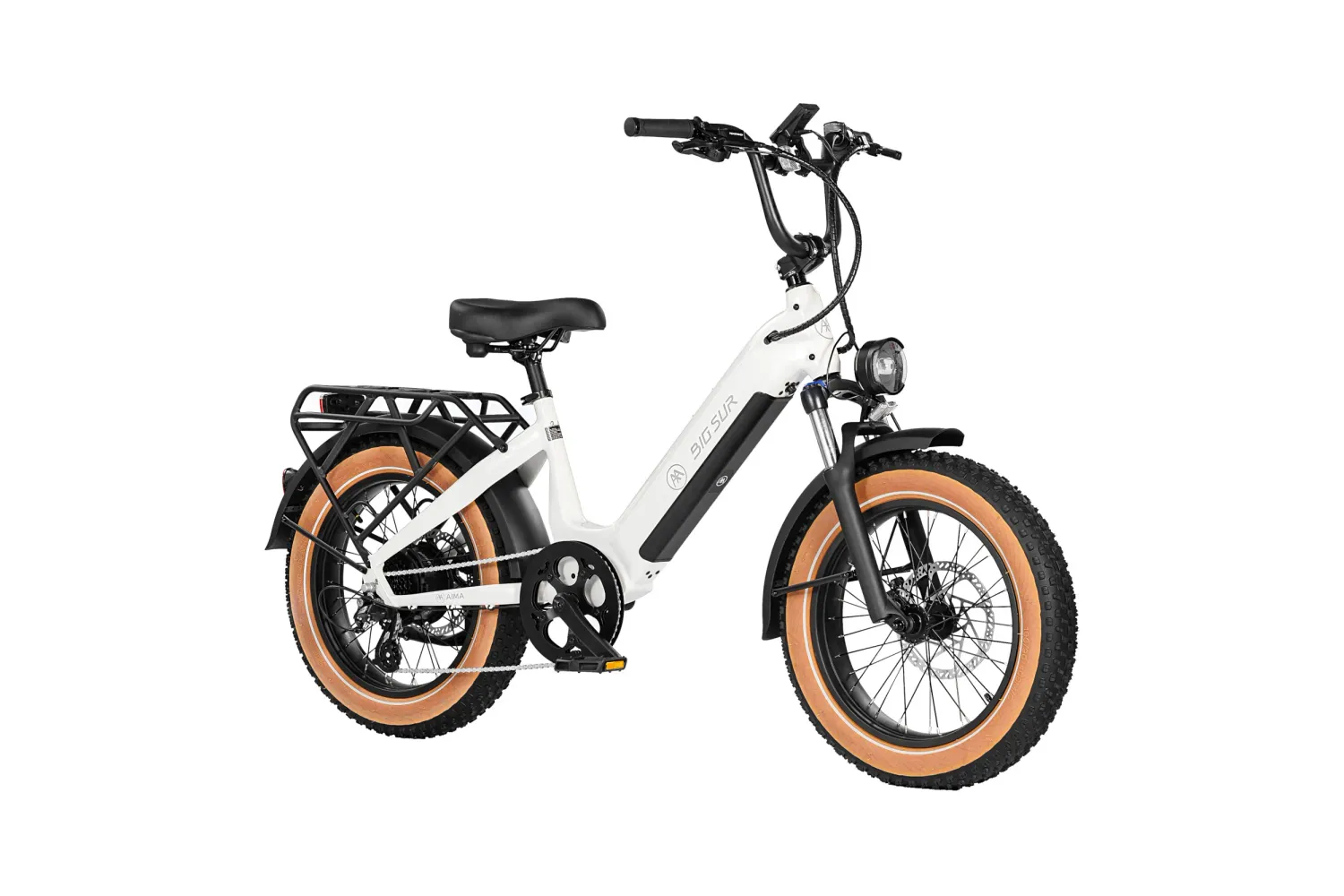

AIMA Big Sur Sport Ebike

$2 399.00
Color
Please choose
In stock: 1 available
Product Details

Everything you love about the original Big Sur is back! Now sporting 20" x 4" fat tires, Big Sur Sport is smaller and lighter than the Big Sur 26". It might even be a little more fun! Big Sur Sport has safety features that include big 203mm brake rotors, LG 21700 battery cells, and a full UL2849 certification. Equipped standard with the AIMA Comfort XL seat and an MIK rear rack, Big Sur Sport delivers the same level of power, comfort, and smoothness of its bigger brother.

Technical Specifications

MOTOR

750W, 48V Brushless Rear Hub Motor

THROTTLE

Throttle on Demand

DISPLAY

Color LCD, Smart Easy-to-Read Display with Backlight

SPEED

Up to 20 MPH Pedal Assist, 20 MPH Throttle

BATTERY

Removable Internal Lithium-ion 48V, 15Ah (720Wh) with LG M50LT 21700 cells

REAR RACK

MIK HD

SENSORS

Torque Sensor

PEDAL ASSIST

5 PAS Levels

CHARGER

48V 3 Amp Fast Charger, about 5 Hours to a Full Charge

RANGE

30 to 60 Miles

FRAME

6061 Single-Butted Aluminum Alloy Frame with Internal Battery

WEIGHT

74 lbs. (Battery included)

PEDALS

9/16" Alloy Platform

FORK

Suspension Fork, 80mm Travel, Adjustable Preload, Lockout

WEIGHT LIMIT

400 lbs.

KICKSTAND

Included, Aluminum Alloy Kickstand

CRANKSET

160mm w/ 52T Chainring

SHIFTER

Shimano 7 Speed

CASSETTE

7 Speed, 11-28T

BRAKES

Tektro Hydraulic Disc Brakes, 203 mm Rotors

CHAIN

130 Link, 7/8 Speed

RIM

Double Wall Aluminum Alloy

SPOKES

Black Stainless 12G Front / 12G Rear

TUBES

Butyl Rubber

HUBS

Front Aluminum Alloy Disc Hub

TIRES

20" x 4" Puncture Resistant

SADDLE

AIMA Comfort, 280mm*270mm Saddle

SEATPOST

Aluminum Alloy, 30.4mm 2-Bolt Clamp

STEM

Threadless, 31.8mm, 7 Degree Rise, Ext 75mm

SEAT CLAMP

34.9mm Quick Release

HANDLEBARS

Aluminum Alloy Double Wall, 31.8mm, 680mm

HEADSET

Sealed Bearing Headset

GRIPS

Ergonomic Comfort


*Ebike Range: Explained

An ebike's battery life is influenced by several factors that can affect its maximum range. While our ebikes can achieve up to 60 miles of range under ideal riding conditions, range can vary from 20 - 60 miles based on many contributing factors.

Here's a list of the most common factors that affect range, as well as what you can do to maximize your riding time.

  • Pedal Assist: Higher levels of pedal assist will allow for an easier ride, but will also draw more power from the battery. Lower pedal assist levels are better for getting as many miles as possible out of your battery.
  • Average Cruising Speed: Riding slower will decrease the amount of energy you lose to wind resistance as the bike pushes you forward. Slower speeds will extend battery life.
  • Tire Pressure: Keeping your tires inflated to the recommended pressure can help increase your range. Maintaining a proper tire pressure not only increases your range, but also helps prevent pinch flats! For most riding situations, checking your tire pressure at least once a week will keep your ride safe and energy-efficient.
  • Load Weight: Carrying a heavier load can decrease your range. This includes the total load of both the weight of the rider and any cargo you may be carrying. More weight takes more time and energy to get up to speed, negatively affecting your range. It's best to keep loads light whenever possible if you're looking to extend your range.
  • Terrain & Elevation: In general, riding over smooth and flat terrain will give you a longer range. Hills and rough terrain can greatly impact your maximum range, especially on higher assist levels.
  • Wind: That's right! The wind can affect your battery range too! Riding into a headwind will decrease your range, but if you're able to catch a tailwind, you'll actually see that you'll gain more range! Be mindful of which way the wind is blowing when you are riding. If you've been riding in a tailwind, turning around will take more energy from the battery to get you home.
  • Ambient Temperature: Riding in cold weather will impact the battery's ability to function optimally. A good rule of thumb is, if you're comfortable, then the battery is comfortable too. This also goes for storing the battery too!
